Strumenti automatici per la spirometria
La spirometria è un metodo diagnostico in cui il paziente deve impegnarsi al massimo per la buona riuscita dell’esame. Tuttavia, la tecnologia digitale può aiutare sia te che il paziente nel processo di esame. Le seguenti funzioni automatiche di MESI mTABLET SPIRO possono aiutarti a guidare il paziente e a interpretare la qualità delle manovre durante e dopo la loro esecuzione.

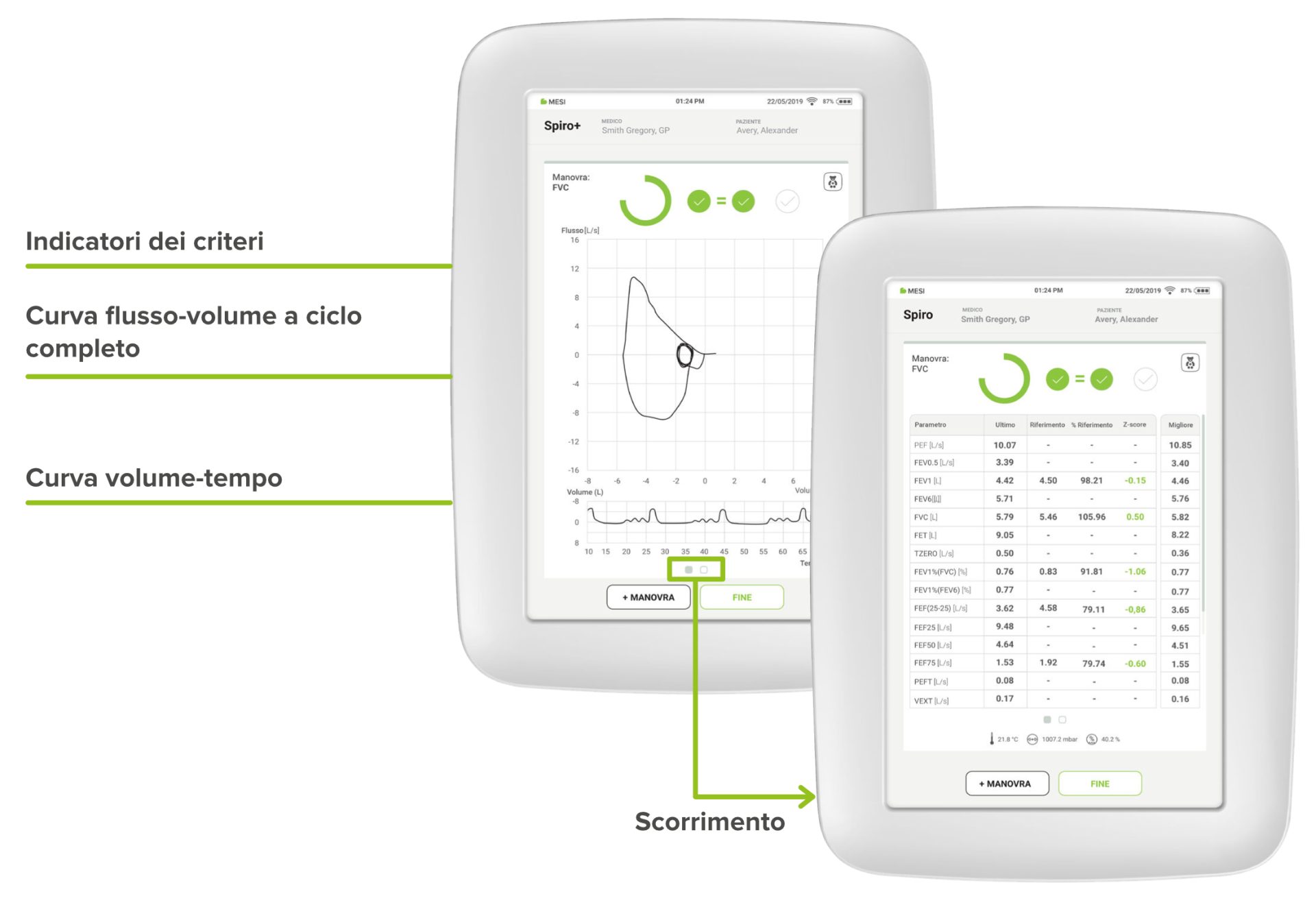

Visualizzazione in tempo reale della curva flusso-volume
È possibile monitorare la manovra mentre viene eseguita attraverso una visualizzazione avanzata della curva flusso-volume e dei parametri. Si può passare dalla visualizzazione del grafico a quella dei valori dei parametri.

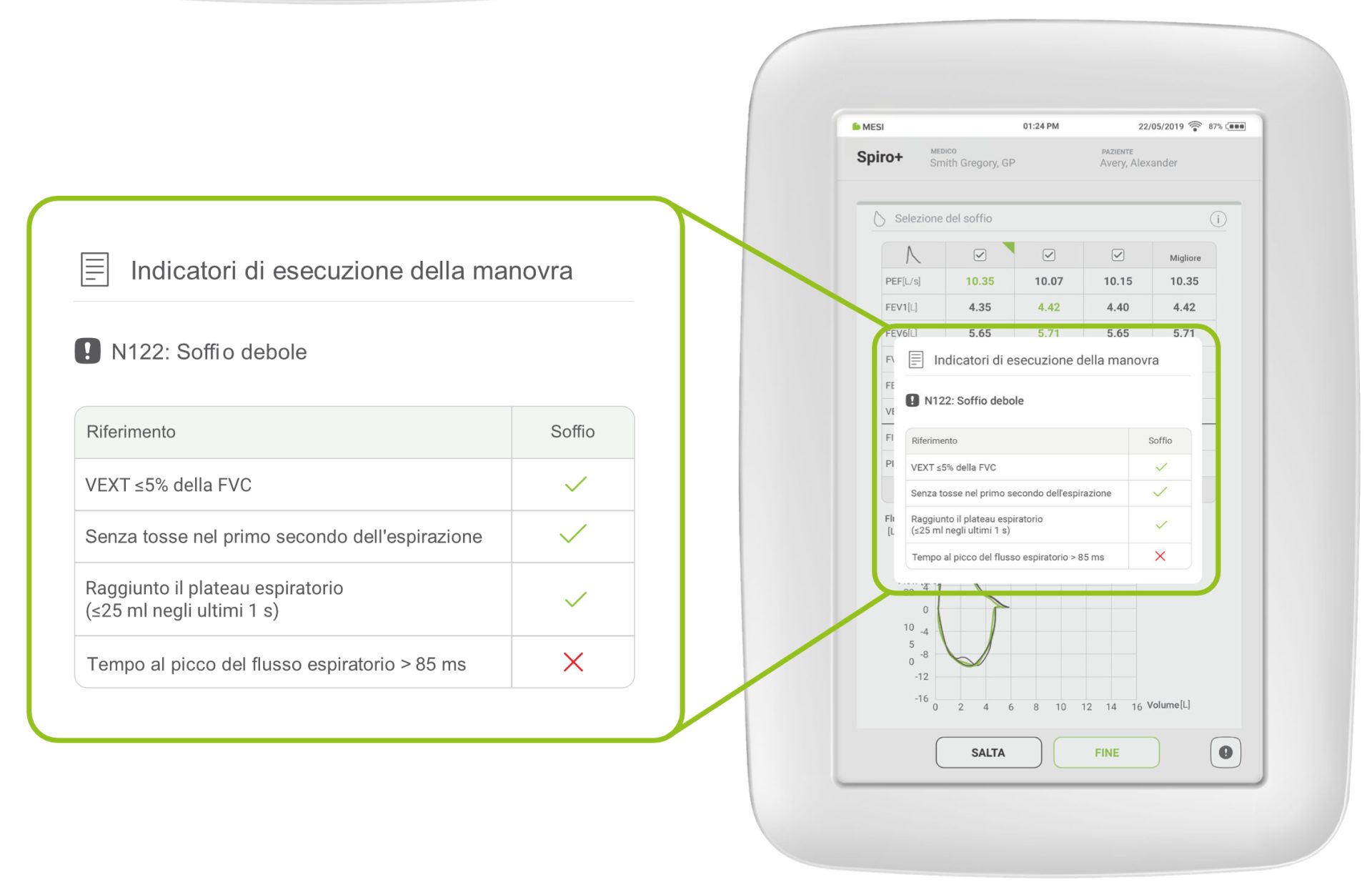

Avvertenze sulla qualità della manovra
Se il dispositivo non rileva alcun problema di qualità nella manovra eseguita, apparirà un segno di spunta verde. Nel caso opposto, sulla schermata di misurazione comparirà uno dei seguenti avvisi sulla qualità della manovra:

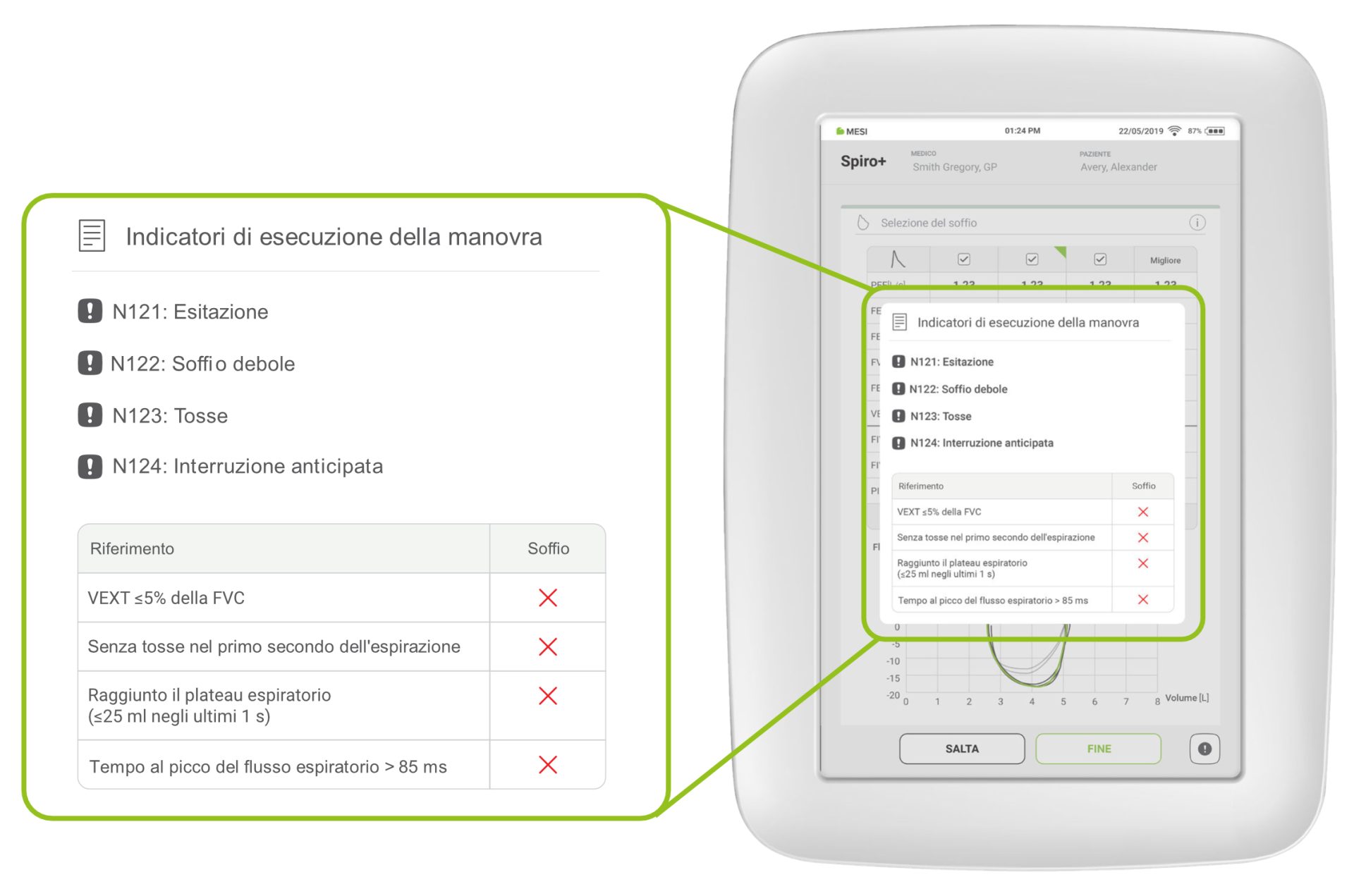

Di seguito un esempio se nessuno dei criteri di accettabilità è stato soddisfatto:

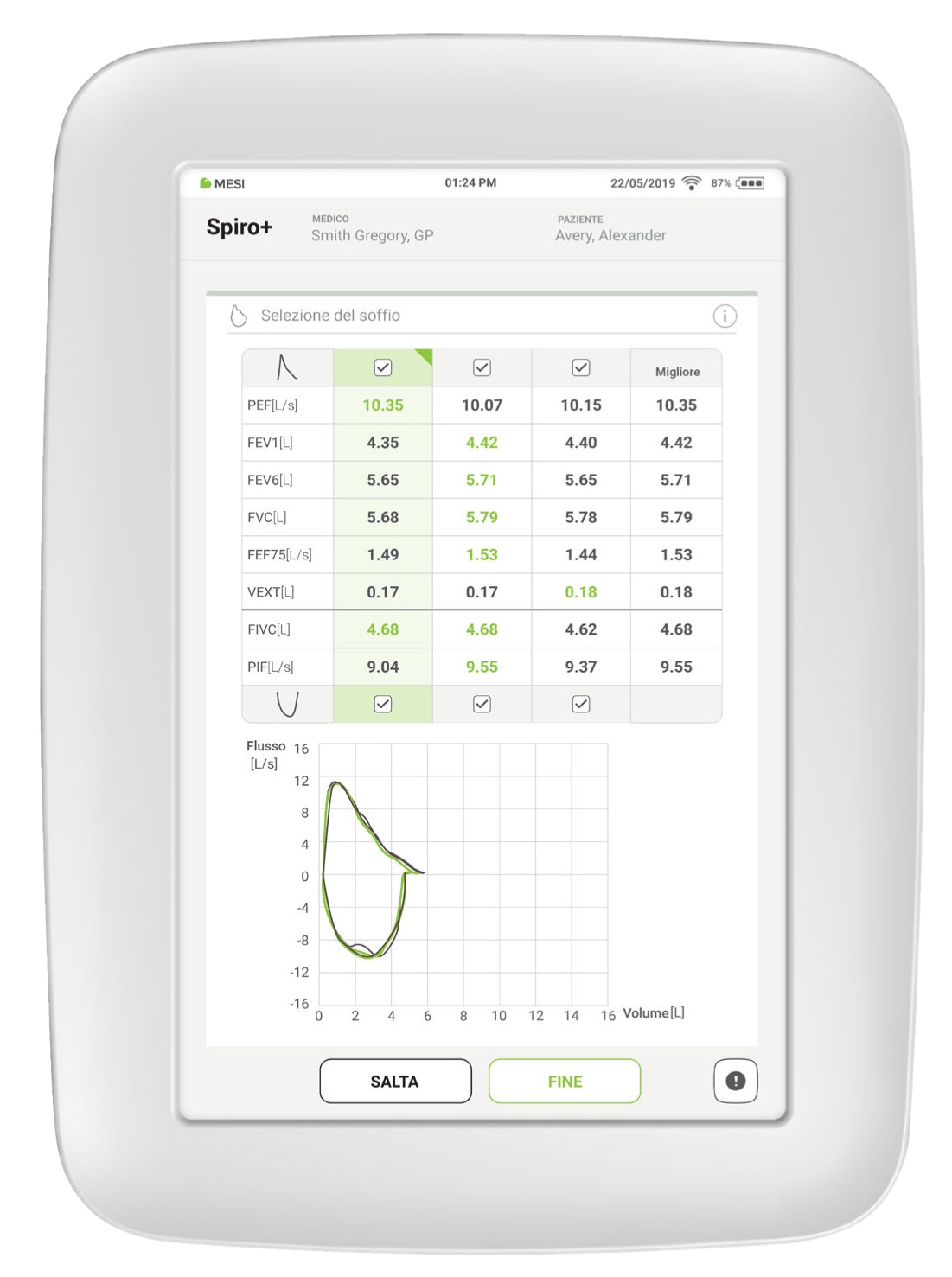

Selezione dei risultati migliori (selezione BestBreath™)
Il dispositivo analizza le scadenze e seleziona automaticamente la curva migliore. Questo è un vantaggio se due curve sono molto simili. Tuttavia, esiste anche la possibilità di deselezionare le manovre selezionate e scegliere manualmente quella preferita.

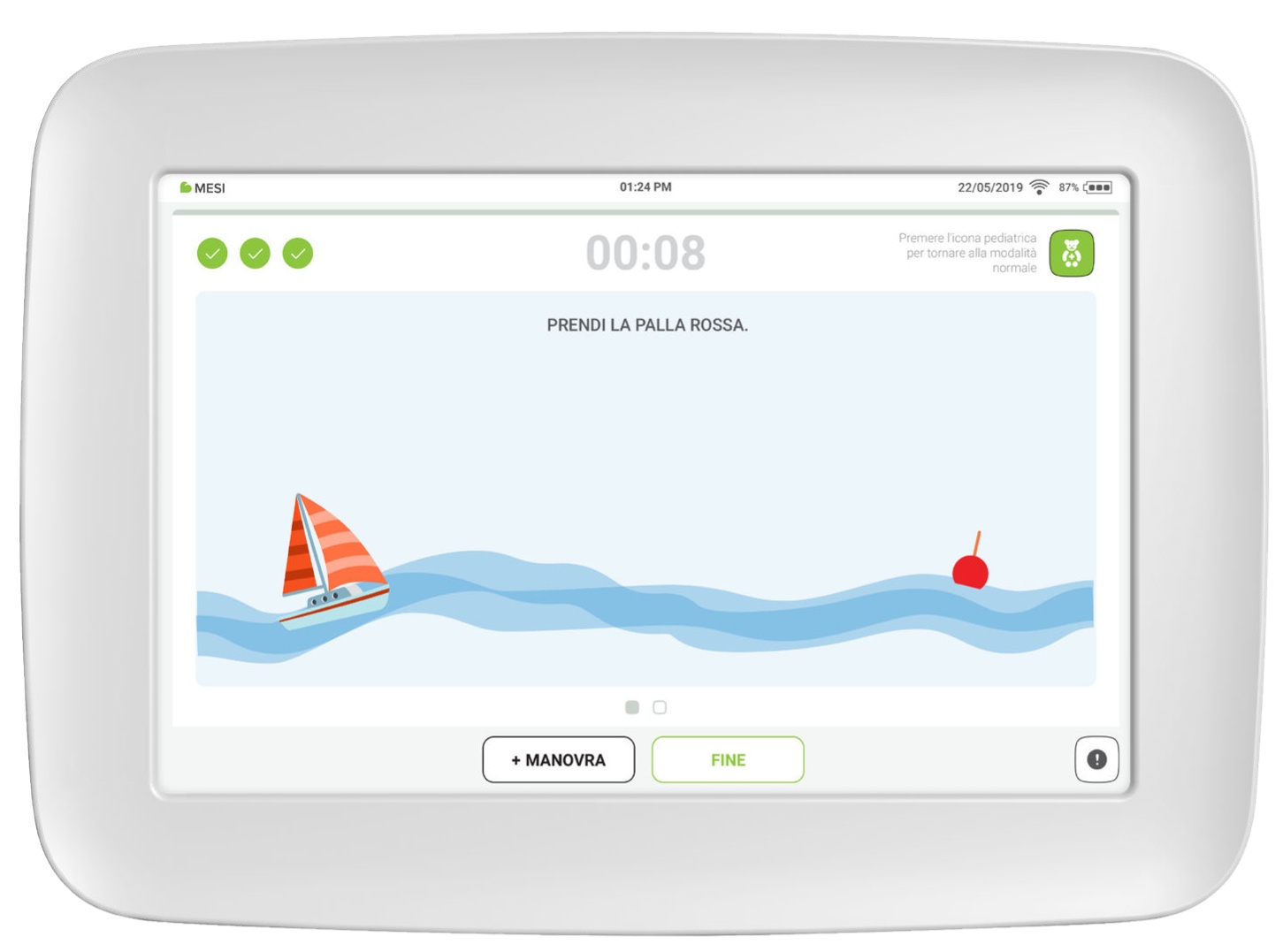

Modalità animata stimolante
La modalità di incentivazione animata è utilizzata per scopi pediatrici. È stata progettata per adattarsi alle caratteristiche psicologiche dei bambini mentre vengono guidati durante il test spirometrico. Mentre il paziente soffia, la barca a vela si avvicina alla boa rossa. Un soffio risulta corretto quando la barca a vela tocca la boa e appare il segno di spunta verde.
Nella MESI mTABLET SPIRO, l’animazione di incentivazione si basa sui criteri ATS/ERS 2019 [16].
Condizioni frequentemente diagnosticate con la spirometria
Un confronto tra diversi dispositivi per la spirometria
E-book: Come eseguire correttamente una SPIROMETRIA
